NodeMCU Motor Shield Board L293D for ESP-12E from ESP8266 esp 12E kit diy rc toy wifi rc smart car remote control For Arduino


For V3 CP2102NodeMcu V3 CP2102V3 CP2102 Kit
Choose an option
Choose an option
For V3 CP2102
NodeMcu V3 CP2102
V3 CP2102 Kit
SKU: 3256804419382415 Categories: ,

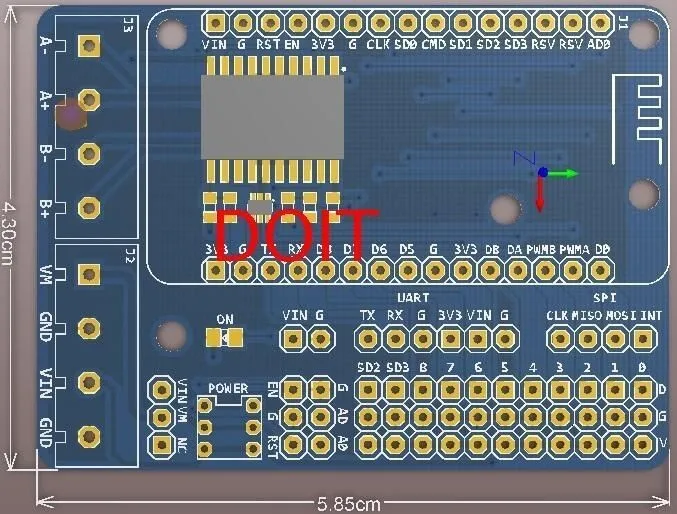

ESP-12E motor drive expansion board
Based on the first motor-driven expansion board ESP-12E development.
l ESP12 DEV KIT development board expansion module;
l lead ESP12 DEV KIT All-function pins: SPI, UART, GPIO, AI and 3.3V power connector;
l expand two-way motor-driven, two-way direct drive motor;
l onboard power switch;
l L293D
l Motor power range: 4.5V ~ 36V;
l Control power range: 4.5V ~ 9V;
l Motor power, control power separation; In the experiment, by short-circuiting block the merger, the VIN and VM short, while power supply to the motor and the control board.
Technical Specifications
Power input:
– Motor Power (VM): 4.5V ~ 36V, can be a separate power supply;
~ Control power (VIN): 4.5V ~ 9V (10VMAX), can be powered separately;
~ Module provides short-circuit sub (short the VM and VIN), you can easily use one power (must 4.5V ~ 9V) simultaneously drive and control the motor;
Logic Operating current Iss: ≤60mA (Vi = L), ≤22mA (Vi = H);
Drive part of the work current Io: ≤1.2A;
Maximum power dissipation: 4W (T = 90 )
Control signal input level: High: 2.3V≤VIH≤VIN; Low: -0.3V≤VIL≤1.5V
Working temperature: -25 ~ + 125
Drive Type: Dual high-power H-bridge driver

ESP12E Dev Kit Control Port: D1, D3 (A motor); D2, D4 (B motor)

Module Weight: about 20g

When l insert ESP-12E module, please note the direction consistent with an expansion board antenna;
l use of short modules that can simultaneously control board and motor.


Electronic module



Model Number

NodeMcu V3

Operating Temperature

Electronic module

Dissipation Power

Electronic module

Supply Voltage

Electronic module


Electronic module




Voltage Regulator

Brand Name



Mainland China
