DSO138 Digital Oscilloscope Kit Electronic DIY Compatible STM32F103C8T6 Single Chip Microcomputer Welding Assembly

$28.00$32.00

ShelllessWith shell
Choose an option
Choose an option
Shellless
With shell
Clear
SKU: 3256805031262381 Categories: ,

DSO FNIRSI-138 2.4″ TFT Handheld Pocket-size Digital Oscilloscope Kit DIY Parts for Oscilloscope Electronic Learning Set 1Msps
This DSO FNIRSI-138 digital oscilloscope kit adopts ARM Cortex-M3 processor and with 2.4-inch TFT screen. It’s easy and reliable for circuit operation. It can display frequency, period, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.

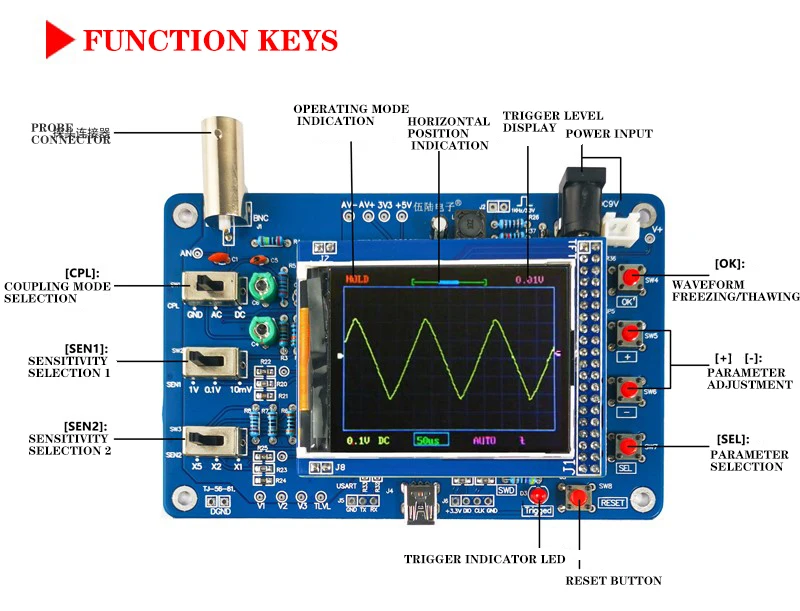

Features:
This kit uses ARM Cortex-M3 processor , and includes a 2.4-inch color TFT display screen, can be used as ARM test development board.
Can be secondary development on the basis of this kit, for example, it can be changed to Millivoltmeter, data loggers.
Adjustable vertical displacement, and with instructions.
With automatic, regular and one-shot modes, easy to capture the moment waveform.
Available rising or falling edge trigger.
Observable previous trigger waveform (negative delay).
Can freeze at any time waveform display (HOLD function).
Comes 1Hz /3.3V square wave test signal source.

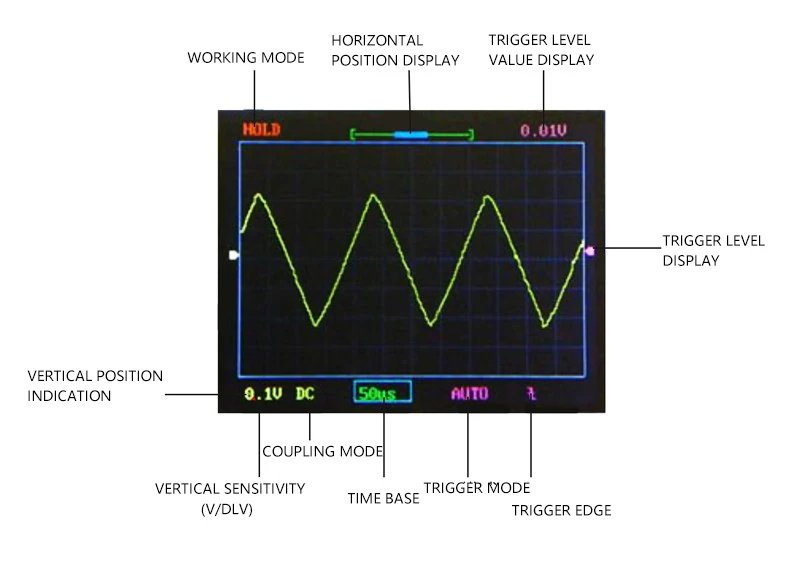

With waveform parameter digital display, including frequency, period, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.
Short-circuit and open-circuit detection: can help the user find out the soldering error.
TFT controller recognition function.
Specifications:
Maximum Real-time Sampling Rate: 1Msps
Accuracy: 12Bit
Sampling Buffer Depth: 1024 bytes
Analog Bandwidth: 0-200KHz
Vertical Sensitivity: 10mV / Div – 5V / Div (1-2-5 progressive manner)
Input Impedance: 1MΩ
Maximum Input Voltage: 50Vpp (1: 1 probe), 400Vpp (10: 1 probe)
Coupling Modes: DC / AC / GND
The Horizontal Time Base Range: 10μs / Div – 50s / Div (1-2-5 progressive manner)
Supply Voltage: DC 9V
PCB Size: 117 * 76mm / 4.6 * 3in
Screen Size: 52 * 40mm / 2 * 1.57in

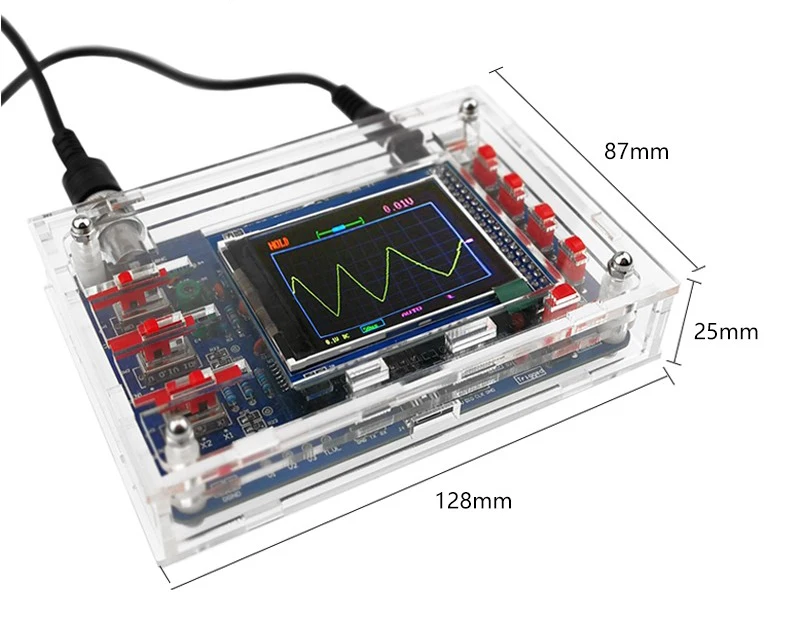

Package Size: 18 * 12.5 * 3cm / 7.08 * 4.92 * 1.18in

Circuit diagram:

Package Included:

Condition

New

Type

Voltage Regulator

Brand Name

NoEnName_Null

Origin

Mainland China
