DIY Project Starter Kit For Arduino UNO R3 DIY Electronic Component Set With 830/400 Tie-points Breadboard

$22.00$26.00

E2E23E24E4
Choose an option
Choose an option
E2
E23
E24
E4
Clear
SKU: 2251832616732035 Categories: , ,

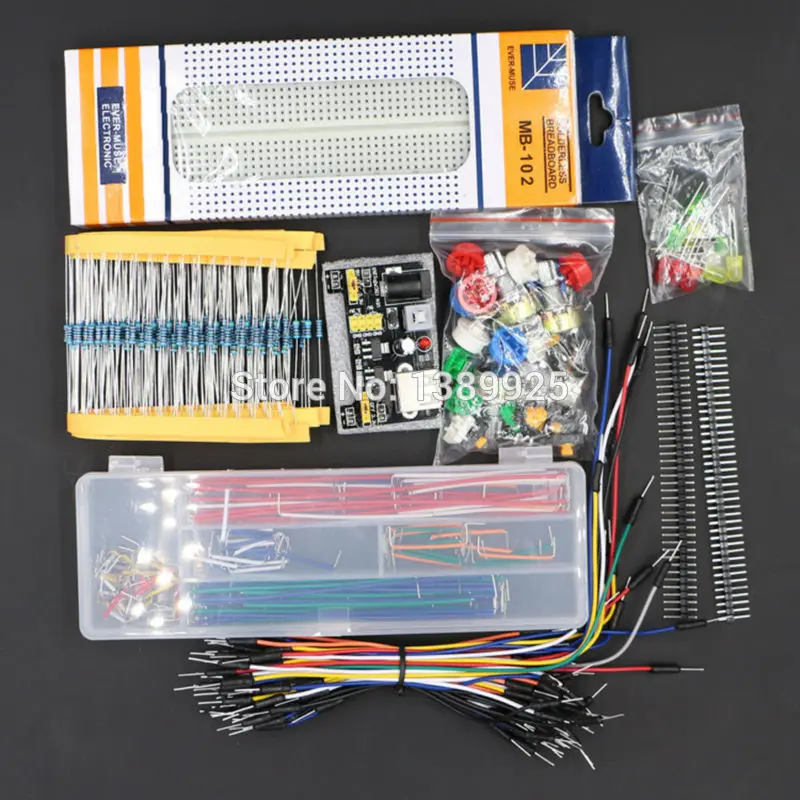

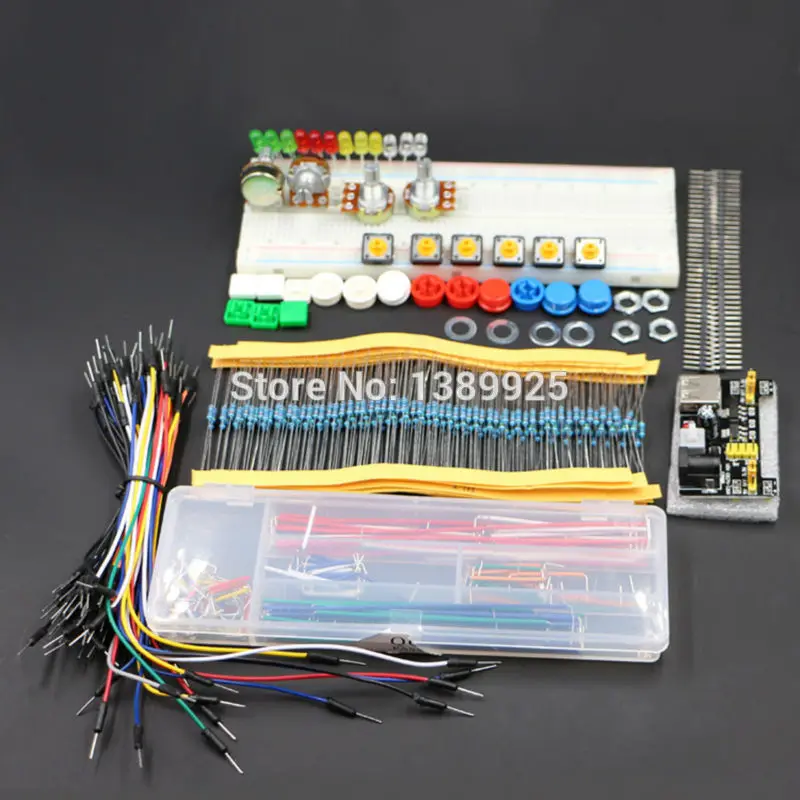

E2 shippng list: 1~20 list for 1package.

Configured package, play UNO R3 basically do not need to go out and buy a sporadic electronic materials.

Item

Name

Value

Quantity

1

Carbon Film Resistors plug

100R

30

2

Carbon Film Resistors plug

1K

30

3

Carbon Film Resistors plug

4.7K

30

4

Carbon Film Resistors plug

10K

30

5

Carbon Film Resistors plug

47K

30

6

Carbon Film Resistors plug

100K

30

7

Carbon Film Resistors plug

1M

30

8

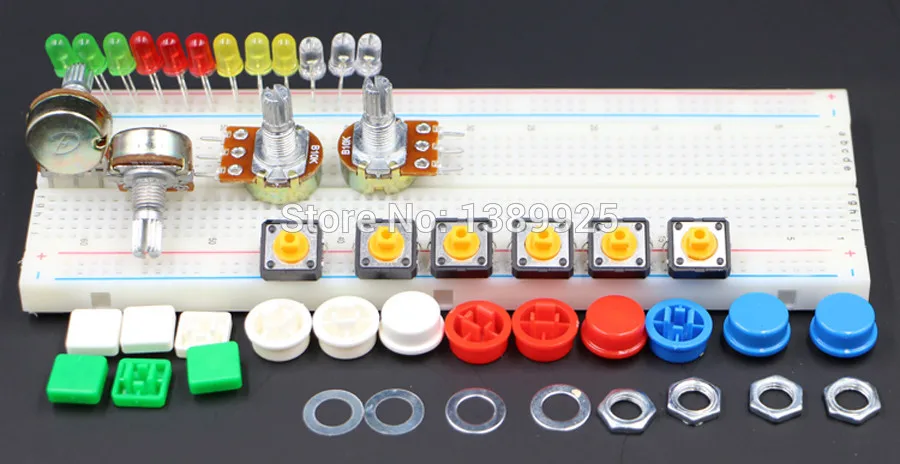

The associated potentiometer (Short) handle length of 3 feet 15MM feet 2.54 or 5.08

10K

2

9

The associated potentiometer (Short) handle length of 3 feet 15MM feet 2.54 or 5.09

100K

2

10

Straw hat type LED plug-F5 white hair green long legs

Green

3

11

Strawhat LED plug-F5 white hair red long legs

Red

3

12

Straw hat the LED plug F5 white hair yellow long-legged

Yellow

3

13

Long legs white hair and white straw hat type LED plug-F5

White

3

14

12 * 12 tact switch switch body

6

15

12 * 12 tact switch key cap – blue circle

3

16

12 * 12 tact switch key cap – red circle

3

17

12 * 12 tact switch key cap – white round

3

18

12 * 12 tact switch key cap – white square

3

19

12 * 12 tact switch key cap – green square

3

20

1 * 40 single pin 2.54 pitch gilded

2

1PCS 65 Root Breadboard Cables
1PCS MB-102 Color breadboard
1PCS Breadboard power module

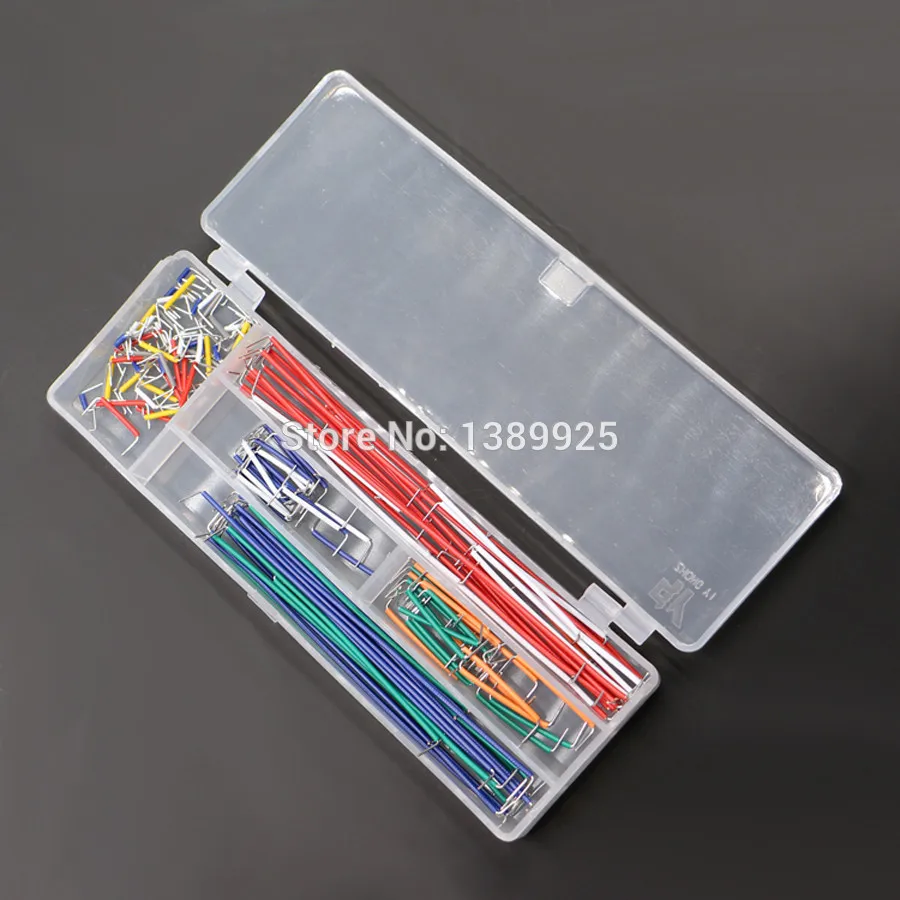

1PCS 140 Root jumper wire box

E4 Packaage list:

10pcs 100 r resistance

10pcs 220 r resistance

10pcs 330 r resistance

10pcs 1 k resistor

10pcs 10 k resistor

10pcs 100 k resistor

10pcs 4.7 K resistor

10pcs 47 k resistor

10pcs 100 pf ceramic capacitor

10pcs 10 nf ceramic capacitor

10pcs 100 nf ceramic capacitor

10pcs 2.2 pf ceramic capacitor

10pcs 10 uf electrolytic capacitor

10pcs 470 uf electrolytic capacitor

10pcs Red LED

10pcs Green LED

10pcs Yellow LED

10pcs Blue LED

2pcs switches with blue hat

2pcs switches with red hat

2pcs switches with yellow hat

2pcs switches with green hat t

1pcs 10 k potentiometer

2pcs LED RGB

1pcs active buzzer

1pcs passive buzzer

1pcs 40 pin header

1pcs 400 point breadboard

1pcs 30 pcs jumper wires

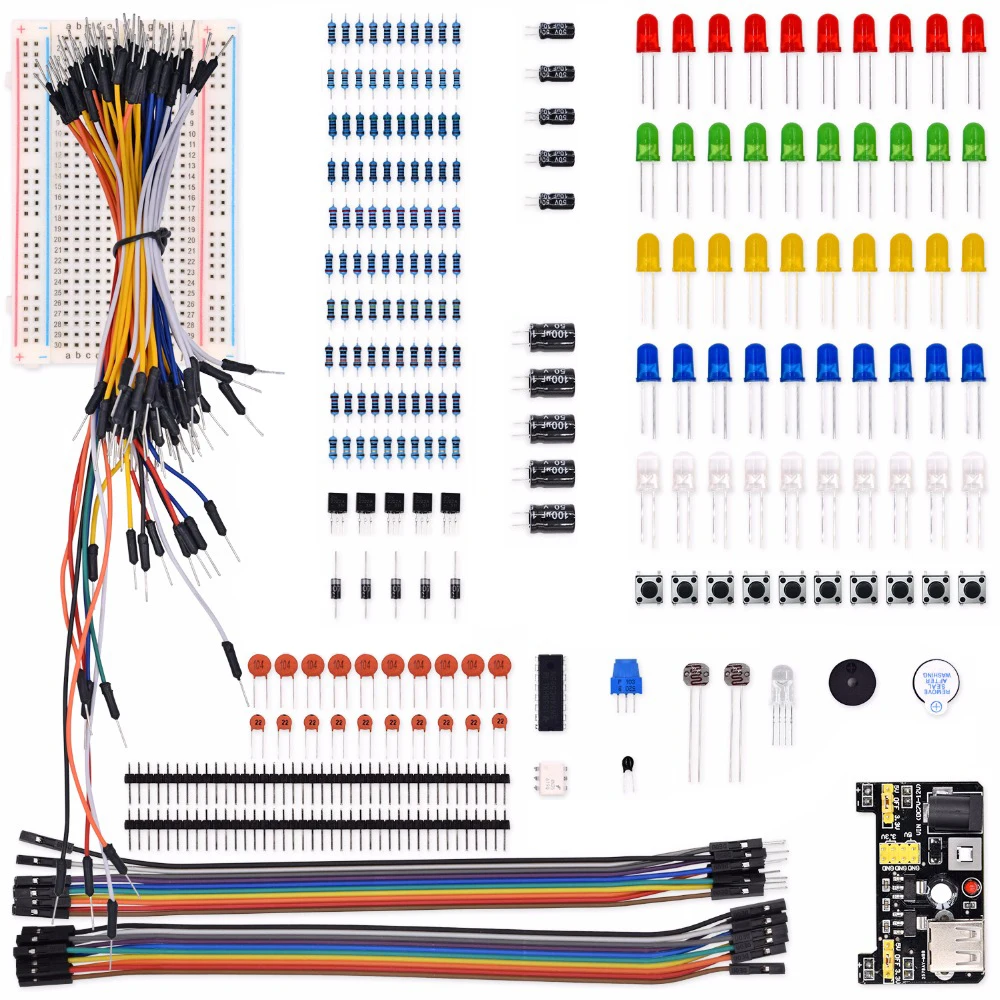

E23 Package list:

1 X Power Supply Module
1 X 830 tie-points Breadboard
1 X 65 Jumper Wire
140 X Solderless Jumper Wire
20 X Female-to-male Dupont Wire
2 X Pin header (40pin)
1 X Precision Potentiometer
2 X Photoresistor
1 X Thermistor
5 X Diode Rectifier (1N4007)
5 X NPN Transistor (PN2222)
1 X IC 4N35
1 X IC 74HC595
1 X Active Buzzer
1 X Passive Buzzer
10 X Button (small)
10 X 22pf Ceramic Capacitor
10 X 104 Ceramic Capacitor
5 X Electrolytic Capacitor (10UF 50V)
5 X Electrolytic Capacitor (100UF 50V)
10 X White LED
10 X Yellow LED
10 X Blue LED
10 X Green LED
10 X Red LED
1 X RGB LED
10 X Resistor (10R)
10 X Resistor (100R)
10 X Resistor (220R)
10 X Resistor (330R)
10 X Resistor (1K)
10 X Resistor (2K)
10 X Resistor (5K1)
10 X Resistor (10K)
10 X Resistor (100K)
10 X Resistor (1M)

E24 Package list:

1 X Power Supply Module
1 X 400 tie-points Breadboard
1 X 65 Jumper Wire
20 X Female-to-male Dupont Wire
2 X Pin header (40pin)
1 X Precision Potentiometer
2 X Photoresistor
1 X Thermistor
5 X Diode Rectifier (1N4007)
5 X NPN Transistor (PN2222)
1 X IC 4N35
1 X IC 74HC595
1 X Active Buzzer
1 X Passive Buzzer
10 X Button (small)
10 X 22pf Ceramic Capacitor
10 X 104 Ceramic Capacitor
5 X Electrolytic Capacitor (10UF 50V)
5 X Electrolytic Capacitor (100UF 50V)
10 X White LED
10 X Yellow LED
10 X Blue LED
10 X Green LED
10 X Red LED
1 X RGB LED
10 X Resistor (10R)
10 X Resistor (100R)
10 X Resistor (220R)
10 X Resistor (330R)
10 X Resistor (1K)
10 X Resistor (2K)
10 X Resistor (5K1)
10 X Resistor (10K)
10 X Resistor (100K)
10 X Resistor (1M)

is_customized

Yes

Brand Name

WeiKedz

Origin

Mainland China
