Support HEVC /H.265, H.264 /AVC video encoding
Support AAC, AAC+, AAC++,MP3, MP2, AC3 audio encoding
-
Support to live streaming on max 4 live broadcast platforms simultaneously
Support 4 streams output simultaneously, support different protocol transmission for each stream
-
Support output video frame rate setting, max 60fps input and output
Support output video resolution setting, max 1920x1080P input and output
-
Choose suitable streaming URL to prioritize bandwidth consumption or image quailty
Support SRT, HTTP, RTSP, RTMP(S), HLS(M3U8), UDP, RTP, FLV, ONVIF, Unitcast etc protocol
-
Support multiple on screen display settings, such as logo /text /scroll text /time etc
Support customize the no signal image when there is no input signal
-
Support both SDI audio and external audio input simultaneously
Support to switch SDI audio or external audio as output audio at will
-
Support web page or APP control dashboard
Support wide area network remote management(via port forwarding)
-
Provide SDK /API /CGI for secondary development
Support logo printing /language /firmware /function etc customization
-
Set up for the first time, plug and play when use it later
Not only RTMP(S), but also streaming HLS to YouTube or other server(New feature)
|
Model No. |
USE265-4-1U |
|
Video |
|
|
Input Video |
4 x SD /HD /3G SDI |
|
Input Resolution |
Max 1920×1080 resolution, max 60fps frame rate |
|
Video Encoding |
HEVC /H.265, MPEG-4 /H.264 AVC, MJPEG |
|
Encoding Levels |
H,265 main profile; H.264 high /main /baseline profile |
|
Video Bitrate |
Adjustable From 32kbit /s to 32mbit /s |
|
Bitrate Control |
CBR, VBR, Strong CBR |
|
Output Resolution |
It is adjustable, max 1920x1080P /60fps |
|
Video Pre-processing |
De-interlacing, noise reducing, sharpening etc |
|
Audio |
|
|
Input Audio |
SDI embedded audio or external stereo audio(3.5mm) |
|
Output Audio |
Support to switch SDI audio or external audio at will |
|
Sampling Rate |
44.1KHz, 48KHz, Same as the input |
|
Bitrate Control |
Adjustable from 48000~320000 |
|
Audio Encoding |
AAC, AAC+, AAC++, MP3, MP2, AC3, Opus, G.711 |
|
Network |
|
|
Interface |
4 x Ethernet port(1000 BASE-T) |
|
Streaming Protocol |
HTTP, RTSP, RTMP(S), SRT, HLS, ONVIF, UDP, RTP, FLV, Unitcast etc |
|
Control Panel |
Webpage UI(language customizable) Or APP |
|
Firmware Update |
Enable by uploading files to dashboard and upgrade |
|
General |
|
|
Dimension (W* L* H) |
490 x 300 x 45 mm |
|
Net Weight |
2.93 kg |
|
Temperature |
0 to 45(For working), -20 to 80(For storing) |
|
Input Voltage |
AC 110V~220V |
|
Material |
Aluminum Shell |
• Status Display
• Stream Setting
• Video Setting
• Audio Setting
• Avanced Setting
• OSD Setting
• LOGO Upload

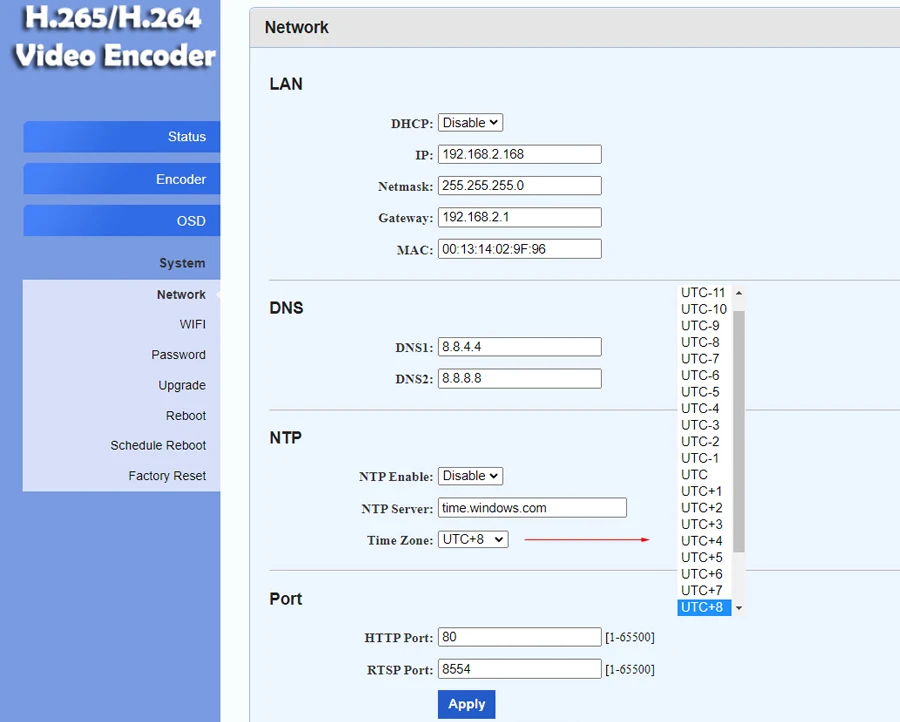

• Network Setting
• Upgrade
